Architecture Overview

Kavach is designed as a modern, cloud-native secret management platform with a focus on security, scalability, and developer experience. This document provides a comprehensive overview of the system architecture.

System Components

Kavach consists of two main components that work together to provide a complete secret management solution:

1. Backend Server (`kavach-backend`)

The backend server is the core of the Kavach platform, providing:

RESTful API - HTTP endpoints for all operations
Authentication & Authorization - JWT-based auth with RBAC
Secret Management - Encrypted storage with versioning
Provider Integration - Cloud platform synchronization
Database Layer - PostgreSQL with SQLC for type safety

2. CLI Tool (`kavach-cli`)

The CLI provides a developer-friendly interface:

Command Interface - Cobra-based CLI framework
HTTP Client - RESTful API communication
Authentication - Device code flow with GitHub OAuth
Configuration Management - Local config and credentials

High-Level Architecture

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   CLI Client    │    │  Backend API    │    │   Database      │
│                 │    │                 │    │                 │
│ ┌─────────────┐ │    │ ┌─────────────┐ │    │ ┌─────────────┐ │
│ │   Cobra     │ │    │ │    Gin      │ │    │ │ PostgreSQL  │ │
│ │   CLI       │ │◄──►│ │   Server    │ │◄──►│ │   Database  │ │
│ └─────────────┘ │    │ └─────────────┘ │    │ └─────────────┘ │
│ ┌─────────────┐ │    │ ┌─────────────┐ │    │ ┌─────────────┐ │
│ │   HTTP      │ │    │ │   JWT       │ │    │ │   SQLC      │ │
│ │   Client    │ │    │ │   Auth      │ │    │ │   Queries   │ │
│ └─────────────┘ │    │ └─────────────┘ │    │ └─────────────┘ │
└─────────────────┘    │ ┌─────────────┐ │    └─────────────────┘
                       │ │   Casbin    │ │
                       │ │    RBAC     │ │
                       │ └─────────────┘ │
                       │ ┌─────────────┐ │
                       │ │ Encryption  │ │
                       │ │   Service   │ │
                       │ └─────────────┘ │
                       └─────────────────┘
                                │
                                ▼
                       ┌─────────────────┐
                       │  Cloud Providers│
                       │                 │
                       │ ┌─────────────┐ │
                       │ │   GitHub    │ │
                       │ └─────────────┘ │
                       │ ┌─────────────┐ │
                       │ │     GCP     │ │
                       │ └─────────────┘ │
                       │ ┌─────────────┐ │
                       │ │    Azure    │ │
                       │ └─────────────┘ │
                       └─────────────────┘

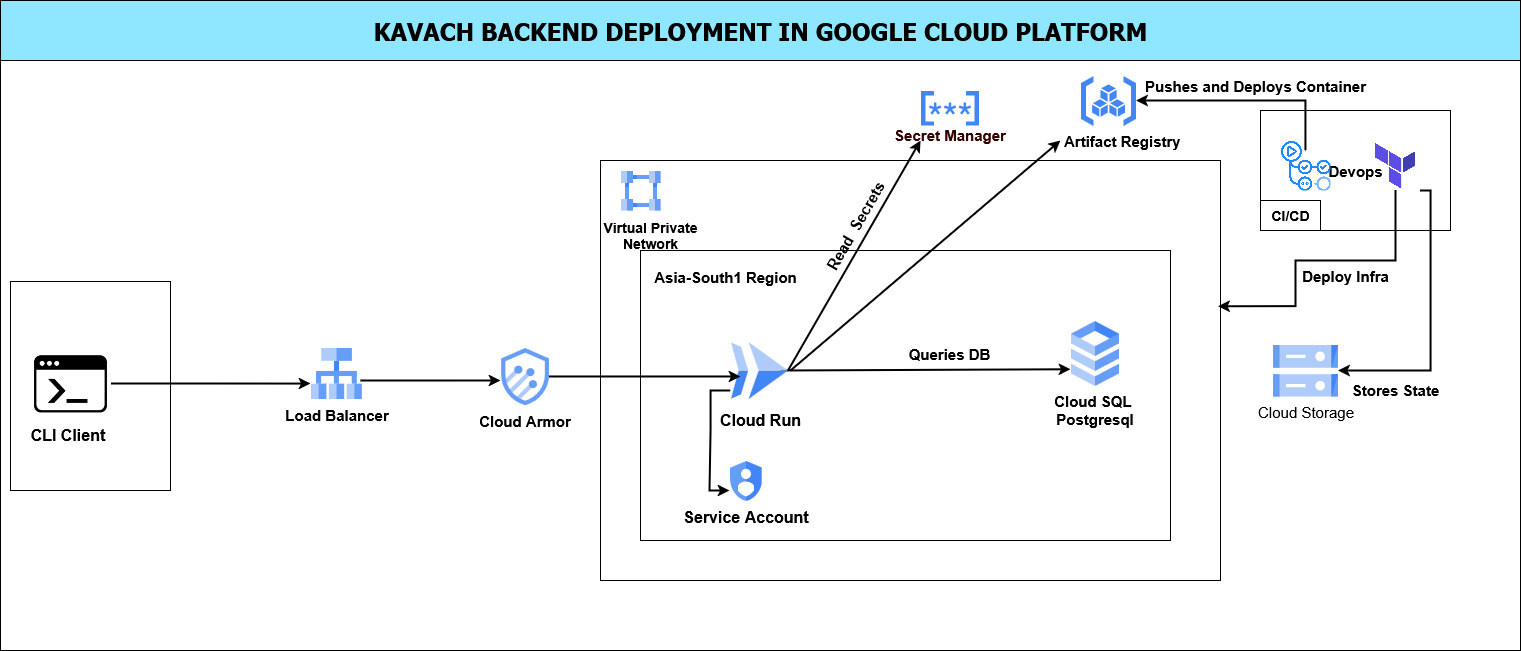

Detailed Architecture Diagram

Kavach Architecture

Kavach's comprehensive architecture showing the relationship between organizations, secret groups, environments, and providers. The platform follows a hierarchical structure where organizations contain secret groups, which in turn contain environments where secrets are stored and managed.

Data Flow

1. Authentication Flow

sequenceDiagram
    participant CLI
    participant Backend
    participant GitHub
    participant DB

    CLI->>Backend: Request device code
    Backend->>GitHub: Generate device code
    GitHub-->>Backend: Device code + user code
    Backend-->>CLI: Device code + user code
    CLI->>User: Display user code
    User->>GitHub: Enter user code
    GitHub->>Backend: Poll for token
    Backend->>GitHub: Exchange for access token
    GitHub-->>Backend: Access token
    Backend->>DB: Store user info
    Backend-->>CLI: JWT tokens
    CLI->>CLI: Store tokens locally

2. Secret Management Flow

sequenceDiagram
    participant CLI
    participant Backend
    participant Encryption
    participant DB

    CLI->>Backend: Create secret version
    Backend->>Encryption: Encrypt secrets
    Encryption-->>Backend: Encrypted data
    Backend->>DB: Store encrypted secrets
    DB-->>Backend: Version ID
    Backend-->>CLI: Success response

3. Provider Sync Flow

sequenceDiagram
    participant CLI
    participant Backend
    participant Provider
    participant Cloud

    CLI->>Backend: Sync secrets
    Backend->>Backend: Get encrypted secrets
    Backend->>Backend: Decrypt secrets
    Backend->>Provider: Create provider client
    Provider->>Cloud: Sync secrets
    Cloud-->>Provider: Sync results
    Provider-->>Backend: Sync status
    Backend-->>CLI: Sync results

Security Architecture

1. Authentication

GitHub OAuth - Device code flow for CLI authentication
JWT Tokens - Access and refresh token mechanism
Token Storage - Encrypted local storage for CLI credentials

2. Authorization

Casbin RBAC - Role-based access control
Resource Hierarchy - Organization → Secret Group → Environment
Permission Model - Granular permissions for each resource type

3. Encryption

AES-256 - Encryption for secrets and provider credentials
Key Management - Separate encryption keys for secrets and providers
Zero-Knowledge - Backend cannot decrypt secrets without proper authorization

Database Schema

Core Tables

-- Users (GitHub OAuth)
users (
  id UUID PRIMARY KEY,
  provider TEXT NOT NULL,
  provider_id TEXT NOT NULL,
  email TEXT,
  name TEXT,
  avatar_url TEXT,
  created_at TIMESTAMPTZ,
  updated_at TIMESTAMPTZ
)

-- Organizations
organizations (
  id UUID PRIMARY KEY,
  name TEXT UNIQUE NOT NULL,
  description TEXT,
  owner_id UUID REFERENCES users(id),
  created_at TIMESTAMP,
  updated_at TIMESTAMP
)

-- Secret Groups
secret_groups (
  id UUID PRIMARY KEY,
  name TEXT NOT NULL,
  description TEXT,
  organization_id UUID REFERENCES organizations(id),
  created_at TIMESTAMP,
  updated_at TIMESTAMP
)

-- Environments
environments (
  id UUID PRIMARY KEY,
  name TEXT NOT NULL,
  description TEXT,
  secret_group_id UUID REFERENCES secret_groups(id),
  created_at TIMESTAMP,
  updated_at TIMESTAMP
)

-- Secret Versions
secret_versions (
  id VARCHAR(8) PRIMARY KEY,
  environment_id UUID REFERENCES environments(id),
  commit_message TEXT NOT NULL,
  created_at TIMESTAMPTZ
)

-- Secrets
secrets (
  id UUID PRIMARY KEY,
  version_id VARCHAR(8) REFERENCES secret_versions(id),
  name TEXT NOT NULL,
  value_encrypted BYTEA NOT NULL
)

-- Provider Credentials
provider_credentials (
  id UUID PRIMARY KEY,
  environment_id UUID REFERENCES environments(id),
  provider TEXT NOT NULL,
  credentials_encrypted BYTEA NOT NULL,
  config JSONB NOT NULL,
  created_at TIMESTAMP,
  updated_at TIMESTAMP
)

Authorization Tables

-- Role Bindings
role_bindings (
  id UUID PRIMARY KEY,
  user_id UUID REFERENCES users(id),
  resource_type TEXT NOT NULL,
  resource_id UUID NOT NULL,
  role TEXT NOT NULL,
  created_at TIMESTAMP
)

-- User Groups
user_groups (
  id UUID PRIMARY KEY,
  name TEXT NOT NULL,
  organization_id UUID REFERENCES organizations(id),
  created_at TIMESTAMP
)

-- User Group Members
user_group_members (
  id UUID PRIMARY KEY,
  user_group_id UUID REFERENCES user_groups(id),
  user_id UUID REFERENCES users(id),
  created_at TIMESTAMP
)

API Design

RESTful Endpoints

/api/v1/
├── auth/
│   ├── device/code          # Get device code
│   ├── device/token         # Exchange for tokens
│   └── refresh              # Refresh access token
├── organizations/
│   ├── /                   # List/Create organizations
│   ├── /{id}               # Get/Update/Delete organization
│   ├── /{id}/members       # Manage organization members
│   └── /{id}/secret-groups # List secret groups
├── secret-groups/
│   ├── /                   # List/Create secret groups
│   ├── /{id}               # Get/Update/Delete secret group
│   ├── /{id}/environments  # List environments
│   └── /{id}/members       # Manage secret group members
├── environments/
│   ├── /                   # List/Create environments
│   ├── /{id}               # Get/Update/Delete environment
│   ├── /{id}/secrets/      # Secret management
│   └── /{id}/providers/    # Provider management
└── user-groups/
    ├── /                   # List/Create user groups
    ├── /{id}               # Get/Update/Delete user group
    └── /{id}/members       # Manage user group members

Authentication Headers

Authorization: Bearer <jwt_token>
Content-Type: application/json

Response Format

{
  "success": true,
  "data": {
    // Response data
  },
  "error": null,
  "error_code": null
}

Scalability Considerations

1. Horizontal Scaling

Stateless Backend - Multiple instances can run simultaneously
Database Connection Pooling - Efficient database connections
Load Balancing - Support for load balancers and reverse proxies

2. Performance

Connection Pooling - Database connection reuse
Caching - JWT token validation caching
Batch Operations - Efficient bulk secret operations

3. Reliability

Database Transactions - ACID compliance for data integrity
Error Handling - Comprehensive error handling and logging
Health Checks - Built-in health check endpoints

Deployment Architecture

Development

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   CLI Client    │    │  Backend API    │    │   PostgreSQL    │
│   (Local)       │◄──►│   (Local:8080)  │◄──►│   (Local:5432)  │
└─────────────────┘    └─────────────────┘    └─────────────────┘

Production

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   Load Balancer │    │  Backend API    │    │   PostgreSQL    │
│   (Nginx/ALB)   │◄──►│   (Multiple)    │◄──►│   (RDS/Cloud)   │
└─────────────────┘    └─────────────────┘    └─────────────────┘
                                │
                                ▼
                       ┌─────────────────┐
                       │  Cloud Providers│
                       │   (GitHub/GCP)  │
                       └─────────────────┘

Technology Stack

Backend

Language: Go 1.21+
Framework: Gin (HTTP server)
Database: PostgreSQL 14+
ORM: SQLC (type-safe SQL)
Authentication: JWT + GitHub OAuth
Authorization: Casbin RBAC
Encryption: AES-256-GCM

CLI

Language: Go 1.21+
Framework: Cobra (CLI)
HTTP Client: Standard library
Configuration: Viper + YAML
Authentication: Device code flow

Infrastructure

Containerization: Docker
Orchestration: Docker Compose (dev), Kubernetes (prod)
Database: PostgreSQL with pgcrypto extension
Monitoring: Structured logging with logrus

Next Steps

💻 CLI Overview - CLI design patterns
🔒 CLI Authentication - Security implementation
🚀 Quick Start Guide - Production deployment
